Unity DOTS: Our top 5 features

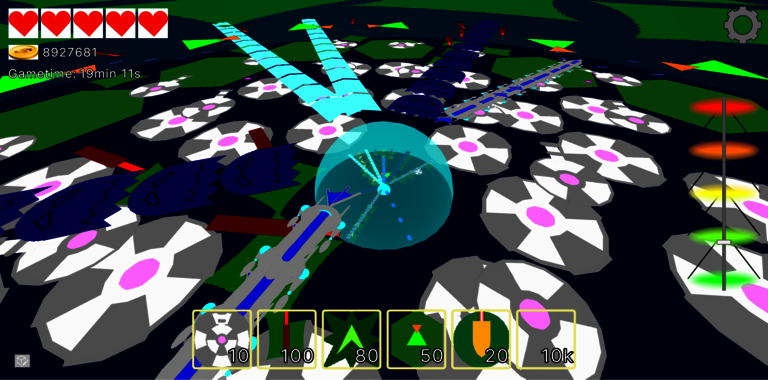

In the past few months, we have been working on a game project based on Unity's Data Oriented Technology Stack. The goal of the project was to experiment with and learn about DOTS, and perhaps even create a fun little game out of it. We mainly focused on the Entities Package (ECS), but we also utilized the Job System and the Burst Compiler wherever possible. Here are our top 5 aspects that we enjoyed the most while working with DOTS, based on our tower defense project 'Recursive Reckoning'.

It's not necessary to optimize every line of code to achieve a significant performance boost compared to mono-scripting. If the core principles of the ECS concept are followed, there won't be many performance issues in most games.

The ECS architecture organizes similar data in memory as contiguous blocks, allowing the CPU to easily access and process them as a whole without many memory jumps.

Here are two interesting videos that compare the performance of MonoBehaviour and DOTS in scripts:

Unity DOTS: Comparing performance and physics: How many Rigidbodies can Unity support ? [2020 DOTS Edition]

Unity DOTS encourages developers to apply clean and efficient programming practices. Unlike traditional approaches, where developers may rely on high-level abstractions, DOTS forces them to think about how they design and implement their systems. The data-oriented mindset promotes a more explicit and organized code structure, leading to improved readability and maintainability.

By breaking down game logic into smaller, reusable components, a clear separation of concerns can be ensured. This modularity enables better code understanding and facilitates the identification and resolution of emerging issues. Additionally, DOTS prevents unnecessary object allocations and promotes the use of fixed-size arrays, reducing memory fragmentation and improving overall performance.

Due to the ECS architecture, game mechanics will be highly reusable for other projects. For example, the health mechanic we created for our DOTS project, Recursive Reckoning, can easily be copied into a new project and is almost plug-and-play: it only requires attaching the authoring script to an entity, and it will have a health value that can take damage.

The health module consists of the following parts:

• Health Component: Contains float variables for the current and maximum health of an entity.
• Damage Buffer: A list of damage values from different sources, which are summed up at the end of each frame and subtracted from the current health.
• Health Authoring: A MonoBehaviour script that can be attached to a GameObject in the inspector window of the editor, which is then converted into an entity with health components via its baker class.
• Health Aspect: Provides easy access to a set of components, which is technically not necessary but offers a clean way of accessing components.
• Apply Damage System: Schedules the "Apply Damage" job to run in parallel at the end of each frame for each entity that has the components of the health aspect.
• Apply Damage Job: Sums up all the damage buffer values and subtracts the result from the current health. It uses the health aspect to access the required components.
• Destroy On No Health System: Schedules the "Destroy On No Health" job to run in parallel every frame for each entity that has the components of the health aspect.
• Destroy On No Health Job: Marks any entity with 0 health for destruction, using the health aspect to access the health.

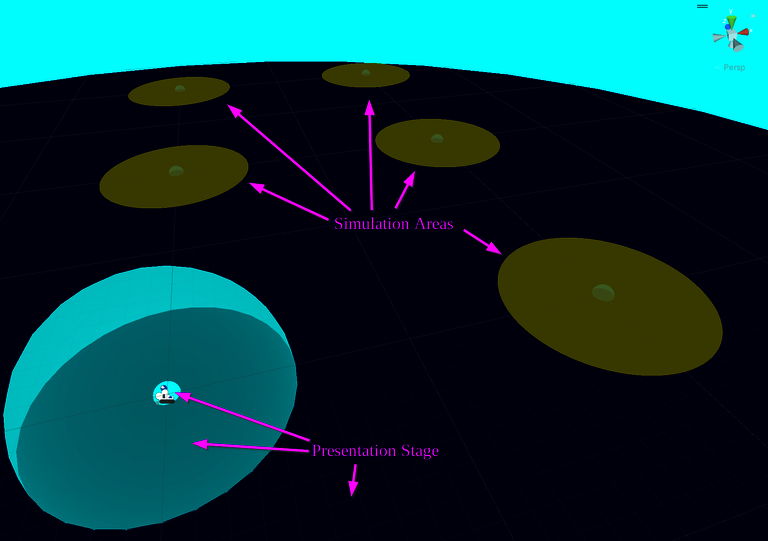

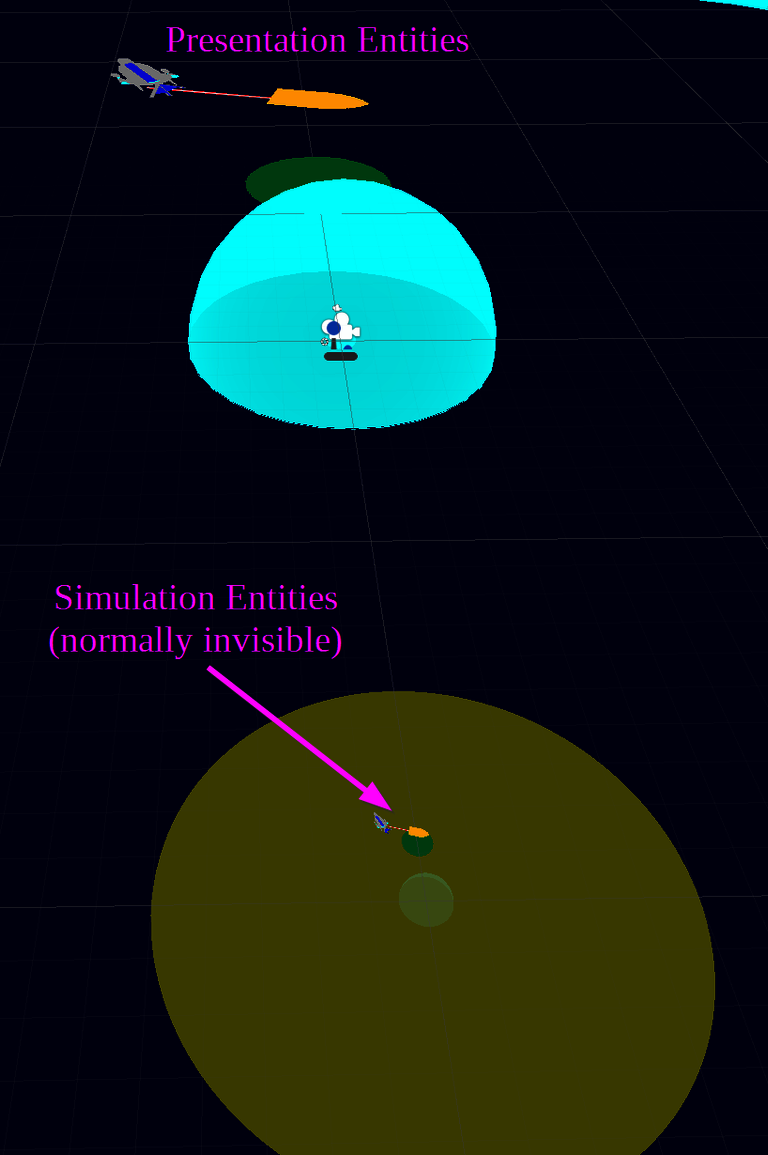

A major concern regarding DOTS is the fear that it will eventually replace the old Mono-scripting backend. However, the opposite is true. Unity's current plans for DOTS involve expanding the toolset available in the editor. It is already possible to use a hybrid approach, combining the strengths of both worlds.

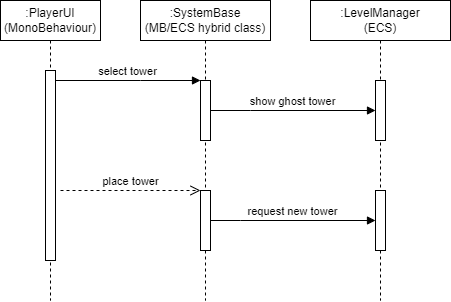

By using a SystemBase class as an interface, it is possible to receive inputs from our user interface and input system, and, for example, create a new tower entity at the cursor position when the player presses the left mouse button.

The hybrid approach also uses authoring and baker scripts to convert GameObjects within subscenes into entities.

Here is an example of an authoring MonoBehaviour with its baker class:

public class HealthAuthoring : MonoBehaviour {
public float value;
}
public class HealthBaker : Baker {
public override void Bake(HealthAuthoring authoring) {
var entity = GetEntity(TransformUsageFlags.Dynamic);
AddComponent(entity, new HealthComponent {Value = authoring.value, Max = authoring.value});
AddBuffer(entity);
}
}

As one of the cornerstones of DOTS, the job system is also designed for efficiency, both in processing and programming. Among other things, it enables easy parallelization of tasks, making optimal use of modern multicore CPUs.

A special type of job is the Entity Job. These jobs process data for many entities efficiently. It is simply necessary to create a function that should be executed once for each entity and queue that function as a job for execution. The job system handles dependencies and execution order to avoid common issues in parallel programming, such as race conditions or deadlocks.

Here is a small example of a job:

[BurstCompile]
public partial struct DestroyOnNoHealthJob : IJobEntity {
public EntityCommandBuffer.ParallelWriter Ecb;

private void Execute([EntityIndexInQuery] int sortKey, HealthAspect health) {
if (!health.isReadyToDie) return;
Ecb.DestroyEntity(sortKey, health.Entity);
}
}

And this is how the job is scheduled for execution:

[BurstCompile]
public partial struct DestroyOnNoHealthSystem : ISystem {
[BurstCompile]
public void OnCreate(ref SystemState state) {
state.RequireForUpdate();
}

[BurstCompile]
public void OnUpdate(ref SystemState state) {
var ecbSingleton = SystemAPI.GetSingleton();

new DestroyOnNoHealthJob {
Ecb = ecbSingleton.CreateCommandBuffer(state.WorldUnmanaged).AsParallelWriter(),
}.ScheduleParallel();
}

Unity has created some debugging tools for the editor to assist with DOTS development. They are available under Window > Entities. The "System" window, in particular, has been very helpful, as it shows the execution order of all predefined and custom systems. Additionally, the inspector has been upgraded to allow debugging of entities and their attached components.

All in all, I am very satisfied with the Data-Oriented Technology Stack, which was released in version 1.0 this year. I see myself playing around with DOTS, Unity Physics, and all the new features in the future, just because I enjoyed it this time. This technology offers great potential, and I am excited to see what will come next as it gains more attention and more developers take the opportunity to leverage the powerful tools it offers.
